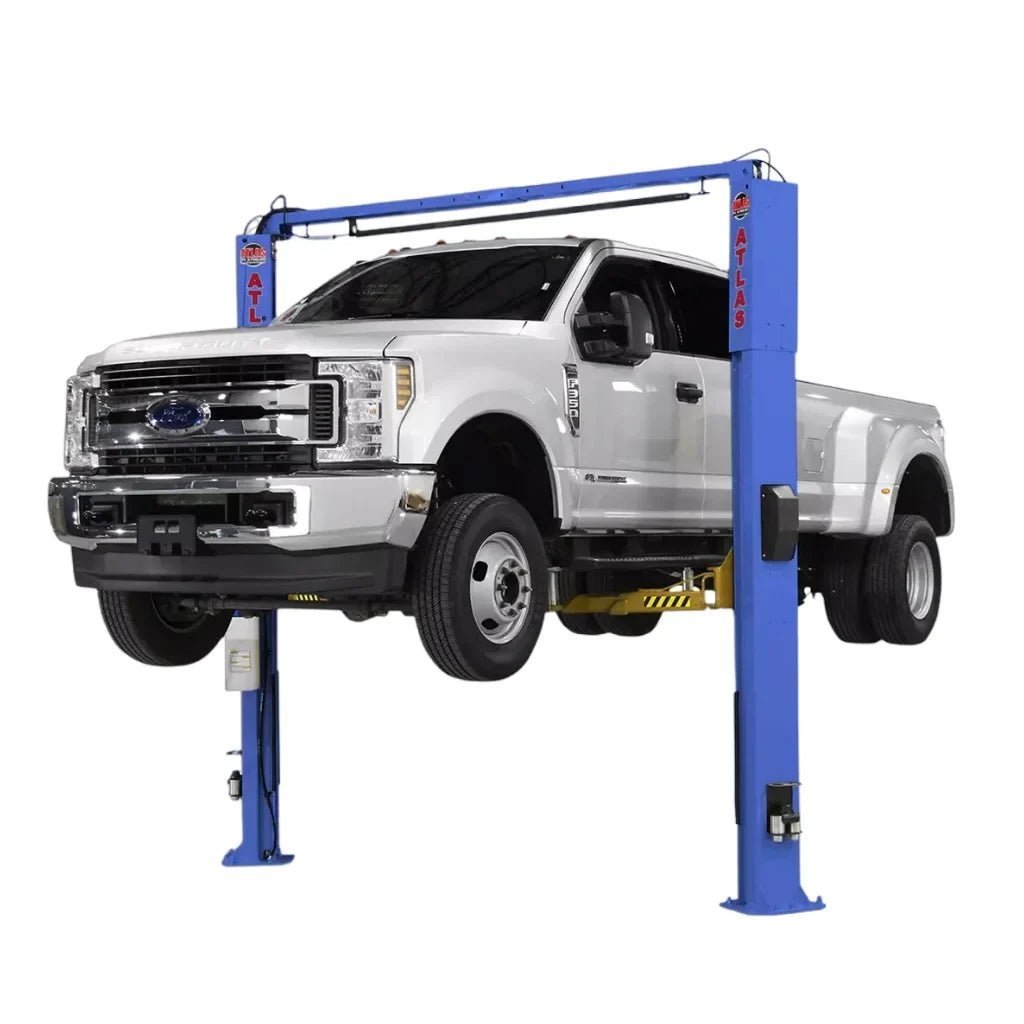

Atlas OHX10000X 10,000 lb Extra Tall 2-Post Lift
$704.70
Description
- 10,000 lb. Capacity
- Commercial Grade
- Extra Tall & Extra Wide
- Overall height: 152″ (12′ 8″)
- Symmetric arms
- Automatic Arm Restraints
- “Padded” Shut-Off Bar
- Rubber Covers on Carriages
- Single Point Lock Release
- Dual Direct-Drive Cylinders
- Powder Coat Finish
- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included
- Shipping Weight: 1,665 lbs
- 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only
| Atlas® ATTD-OHX10000X Specifications | ||
| Capacity | 10,000 LB. | |
| Overall Height | 152″ (12′ 8″) | |
| Overall Floor Width | 144 3/8″ (12′ 3/8″) | |
| Outside Column to Outside Column | 136″ (11′ 4″) | |
| Maximum Lift Height (Without Adapters) | 74 3/4″ | |
| Maximum Lift Height (With Adapters) | 85 3/4″ | |
| Minimum Arm Height | 4 1/2″ | |
| Inside Column | 118 1/4″ (9′ 10 1/4″) | |
| Drive Thru | 106 7/8″ (8′ 10 7/8″) | |
| Column Size | 9 1/8″ x 11″ | |
| Column Thickness of Steel | 5mm | |
| Base Of Lift | 18 1/2″ x 21 1/2″ | |
| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended | |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) | |
| Shipping Weight | 1,665 LBS. | |
| Adapter Heights | 4 Each 2″, 3″, 6″ | |
| Arm Hole/Adapter Peg Size | 1.5″ | |
| Requires a minimum of 4″ of concrete with a 3000 psi. rating | ||
