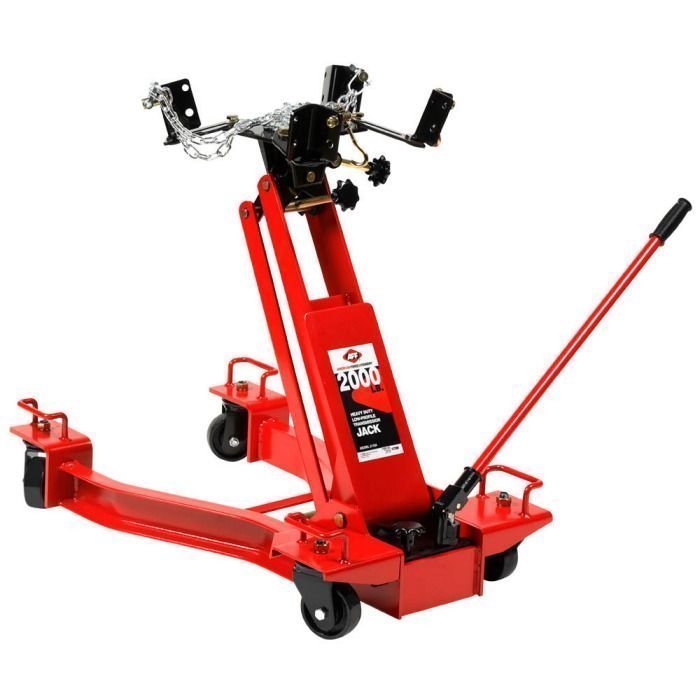

AFF Low Profile Transmission Jack 2,000 lbs. Capacity
$792.00
Description
The AFF Low Profile Transmission Jack allows a service technician the ability to install or remove transmissions, differentials, and transfer cases. Ideal for light to medium weight truck transmissions. The low profile style provides superior clearance and the wide high-grade alloy steel wishbone frame design provides for efficient load distribution and increased stability. The 4-way tilting head allows easy positioning for installation and removal of transmissions and the fully adjustable universal saddle with adjustable arms allows easy positioning. This is equipped with a safety overload bypass and a long handle that pivots 360° around the pump.
Features
- Ideal for light to medium-weight truck transmissions
- Constructed of high-grade alloy steel
- Low profile style provides superior clearance
- Wide chassis design provides for efficient load distribution and increased stability
- 4-way tilting head allows easy positioning for installation and removal of transmissions
- Fully adjustable universal saddle with adjustable arms for easy positioning
- Safety overload bypass to prevent hydraulic damage
- Four industrial grade 3″ casters
- Long handle pivots 360° around the pump
Specifications
- Capacity: 2,000 lbs.
- Low Height: 5.875″
- High Height: 30.75″
- Front Tilt: 15°
- Rear Tilt: 10°
- Side Tilt: 15°
- Head Width: 7″ – 16″
- Head Length: 9″ – 14″
- Width: 18.25″
- Length: 36.75″
- Weight: 194 lbs.
- Warranty: (1) Year
